Superconductivity
Supravodivosť

    The heat capacity of a 2H-NbS₂ single crystal has been measured by a highly sensitive ac technique down to 0.6 K and in magnetic fields up to 14 T. At very low temperatures, data show excitations over an energy gap
(2Δ_S/k_BT_c≈2.1) much smaller than the BCS value. The overall temperature dependence of the electronic specific heat C_e can be explained either by the existence of a strongly anisotropic single-energy gap or within a two-gap scenario with the large gap about twice bigger than the small one. The field dependence of the Sommerfeld coefficient γ shows a strong curvature for both principal-field orientations, parallel
H||c and perpendicular H⊥ to the c axis of the crystal, resulting in a magnetic field dependence of the superconducting anisotropy. These features are discussed in comparison to the case of MgB₂ and to the data obtained by scanning-tunneling spectroscopy. We conclude that the two-gap scenario better describes the gap structure of NbS₂ than the anisotropic s-wave model.

J. Kačmarčík, Z. Pribulová, C. Marcenat, T. Klein, P. Rodiere, L. Cario, and P. Samuely:
Specific heat measurements of a superconducting NbS₂ single crystal in an external magnetic field: Energy gap structure;
Physical Review B 82, 014518 (2010).

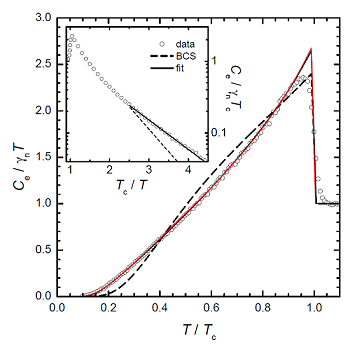

Figure 1: Open circles: electronic specific heat of NbS₂ in zero magnetic field extended down to 0.6 K. Dashed line: BCS single-gap weak-coupling case. Solid line: two-gap model with 2Δ_S/k_BT_c=2.1, 2Δ_L/k_BT_c=4.6 and respective relative contributions γ_S /γ_n=0.4, γ_L /γ_n=0.6. The anisotropic-gap model with anisotropy parameter α =0.5 and 2Δ_S/k_BT_c=3.6 follows essentially the same line. Inset: exponential dependence of the specific heat, the full line represents the best fit of the exponential decay, the dashed line is the behavior expected for a BCS single-gap weak-coupling limit.

Figure 2:
(a) Open circles: normalized Sommerfeld coefficient γ as a function of magnetic field perpendicular to the ab planes of NbS₂. Line: model accounting for highly anisotropic gap with α=0.5. Inset is the derivative of the corresponding curves from the main panel: open circles–of the measured data, line–of the model. (b) and (c) γ/γ_n for both orientations of the magnetic field in NbS₂ and MgB₂, respectively.

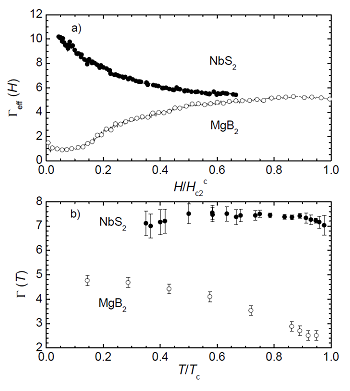

Figure 3: Anisotropy of NbS₂ (full circles) compared to MgB₂ (open circles): (a) field dependence of effective anisotropy defined as the ratio of the fields applied in both principal orientations that correspond to the same γ value in Figs. 2(b) and 2(c), (b) temperature dependence of anisotropy Γ=H_c2^ab/H_c2^c.
